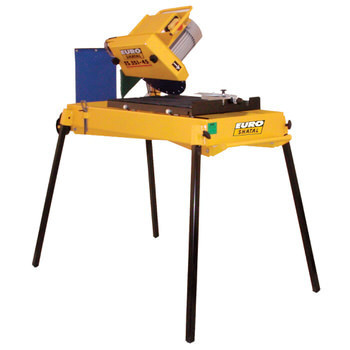

Bricks and Tile Saws - TS351-45

Bricks and Tile Saws - TS351-45
Bricks and Tile Saws - TS351-45
Product Code : TS351-45
Brand Name : EURO SHATAL
Product Description

Bricks and Tile Saws - TS351-45

From our wide range of products, we offer optimum quality 5.5hp 380v Electric Motor to our prestigious clients. The offered5.5hp 380v Electric Motor is extensively used in various industries in order to convert electrical energy into mechanical energy.The offered motor is processed by making use of quality tested components and cutting edge technology by our highly skilled professionals. The offered motor is provided in different sizes and designs to meet the demands of our esteemed clients. Moreover, this motor is sternly examined by our quality controllers on diverse parameters, so as to furnish a qualitative range at our client's end.

Features:

  • User friendly design
  • Robust construction
  • Easy to operate
  • Less power consumption

Cat No : M31100. O

Tilting cutting head to 45 degrees, 3 HP single phase (230V) motor incl. Legs & wheel set,

  • Max. Cutting length 600mm.
  • weight: 74kg
  • blade capacity: 350/300 mm
  • depth of cut: 210* mm
  • also available with 3HP 110V or 4HP 380V motor

Safety Instruction :

  • Laws governing safety aspects on machinery may vary between countries but the following guides will be useful to all operators:
  • Users should carefully follow any operating instructions given.
  • Never operate the machine without protection covers for all moving parts or components.
  • Never operate the machine in any dangerous fire zone or under weak lighting conditions.
  • When operating the machine, always wear noise reduction ear protectors and safety glasses.
  • When operating the machine, always wear safety shoes and safety clothing.
  • Before use always fill the water container with clean and enough water.
  • Only operate the machine with a fully earthed-plug , do not operate the machine in case of doubt.
  • Always ensure that the machine is standing in a level position on a firm base.
  • This machine may only be used under frost - free conditions.

CE DECLARATION OF CONFORMITY

We hereby declare that the equipment described below conforms to the relevant fundamental safety and health requirements of the appropriate CE Directives, both in its basic design and construction. This declaration will cease to be valid if any modifications are made to the machine without our expressed approval.

Product : Tile saws Model : TS301 ; TS351 ; TS301-45 ; TS351-45

Relevant CE Machinery Safety Directives : 2006/42/EEC ( 98/37/EEC, 89/392/EEC )

And Low Voltage Directives : ( 73/23/EEC) amended by 93/68/EEC

Appropriate internal measures have been taken to ensure that series-production units conform at all times to the requirements of current CE Directives and relevant standards.

The signatories are empowered to represent and act on behalf of the company’s management.

Preface To The Manual :

  • Before leaving our factory every machine passes an exacting inspection programme.
  • Following the instructions will ensure that your machine gives long service, in normal operating conditions.
  • The user advice and spare parts mentioned in this document are given as an indication, and do not constitute an undertaking. No warrantee will be granted in the event of errors or omissions, or for damage occurring during delivery, or caused by the design or use of the machine. We are very concerned about the quality of our products and we reserve the right to make any technical modifications to improve them, without advance notice.

This document will:

  • Provide the user with information about the machine.
  • Information about its possible uses.
  • Prevent accidents due to unsuitable use, by an untrained person, during maintenance, repairs, overhauls, handling or transport.
  • Improve the reliability and durability of the machine.
  • Ensure correct use, regular maintenance, and fast fault finding in order to reduce repair costs and reduce down time.
  • The manual should always be available at the place of work.
  • It should be read and used by any person installing or using the machine.
  • The obligatory technical regulations in force in the country where the machine is used must also be adhered to for maximum safety.

Safety Instructions

  • Laws governing safety aspects on machinery vary between countries but the following guides will be useful to all operators.
  • Users should carefully follow any operating instructions given.
  • Never operate the machine without blade guard.
  • Never operate the machine in any dangerous fire zone or under bad lighting conditions.
  • When operating the machine, always wear noise reduction ear protectors and safety glasses.
  • When operating the machine, always wear safety shoes and safety clothing.
  • Before use always fill the water container with clean water.
  • Only operate the machine with a fully earthed plug. Do not operate the machine in case of doubt.
  • Always use a disc suitable for the type of material being cut.
  • Always ensure that the machine is standing in a level position on a firm base.
  • This machinery may only be used under frost- free conditions.
  • Keep hands away from the rotating disc.
  • Store in a dry place, not accessible to children. Maintain the tools carefully.
  • Use of a saw blade or abrasive blade is prohibited.

Technical Specifications :

MODEL

POWER

VOLTAGE +5%

CURRENT

PUMP

Standard

3 HP (2.2 KW)

230v-50 Hz

13.6 A

55 W-230V

  • Motor speed: 2800 RPM
  • Blade speed: 2800 RPM
  • Electric protection: IP 55

Depth of cut (E):

  • at 90º : ø 300 = 80 - 160 mm - at 45º : ø300 = 80 - 160 mm
  • at 90º : ø 350 = 105 - 210 mm - at 45º : ø350 = 105 - 210 mm
  • By reversing material.

Length of cut (L):
Model:

TS301 : 600mm
TS301/45 : 600mm
TS351 : 600mm
TS351/45 : 600mm

Dimensions (mm) Lx W x H
Model:

TS301 : 1130 x 570 x 540
TS301/45 : 1130 x 570 x 540
TS351 : 1130 x 570 x 540
TS351/45 : 1130 x 570 x 540

Unladen weight:
Model:

TS301 : +70kg
TS301/45 : +66kg
TS351 : +71kg
TS351/45 : +67kg

In order to increase rolling table stability when cutting tile of 480mm and less a 5th bearing was added to the rolling table. When a 600mm tile needed to be cut this 5th bearing should be removed by the user.

Blade cooling by water spray into the blade casing.

  • Minimum tank capacity: 38 liters.
  • Water pump: 55W - H-2.2 m.
  • Electricity supply: 230V: H07-RNF 3 x 0.75² - Lg 3m.
  • MODELS : TS301; TS301/45; TS351; TS351/45

POWER LEVEL

PRESSURE LEVEL

VIBRATION LEVEL

LWA (DB)
EN 23744

LPA (DB)
EN 31201

689/392/CEE
et 91/368/CE

CUTTING
113

CUTTING
105

CUTTING
2.3 m/s2

NOT CUTTING
93

NOT CUTTING
85

NOT CUTTING
0.8m/s2

Inspection- Description of The Machine

  • On receiving the machine, check its condition.
  • Always keep it perfectly clean.
  • Check the supply cable periodically.
  • Always keep alert when working.
  • Ensure that there is no abnormal vibration.

Fitting of The Cutting Disc :

  • Disconnect the machine by unplugging the supply cable
  • The blade locking nut has a left- hand thread.
  • Check that the blade is assembled correctly. Check that the arrow marked on the blade is in the same direction as the arrow on the blade guard.

Electrical Connection

Electrical Safety:

  • Operate this machine only on a supply equipped with a 30 mA earthed current-limiting earth leakage relay.
  • The RCCB must be used correctly, including testing it regularly. For tools supplied with an integral RCCB in the cable or in the mains plug, if the cable or plug has been damaged, repairs must be carried out by the manufacturer, one of his agents or by a qualified repair workshop to avoid any risks resulting from errors.
  • Make sure that the mains voltage corresponds with that marked on the manufacturer’s plate on the machine.
  • Three- phase motor
  • Make sure that the motor rotates in the same direction as the arrow on the blade guard: If the motor does not turn in the direction required, swap two of the supply leads.
  • Use the following types of plug, single phase 2 P + E, according to the corresponding voltage.
  • Extension lead: Cable size sufficient for the electrical power, connection to the mains by a H07 RNF type cable of the following size: 3 x 2.5 mm² up to 50m for 230V.

Operation

Always pay extreme care and attention to the preparation of the machine before starting up. Remove all adjustment tools and wrenches from floor and machine. Always keep blade guard in place.

  • Fill the water tank.
  • The water pump should be covered with water all the times as without it there is no cooling and it will overheat and burn. As each machine is fitted with a self-priming pump, the water is sprayed onto the blade as soon as the machine starts.

Depth of Cut Adjustment

Loosen locking handle and lift head so that the required gap is obtained. Re tighten locking handle.

Overload

If the motor is overloaded as a result of too much pressure or because of unsuitable or worn out blade, the overload switch will automatically cut off the power.

Wait a few minutes for the motor to cool. In 230 V Machines (with internal thermal protection overload) : Push the green start button.

Important Advice :

  • The manufacturer declines all responsibility for loss or damage resulting from misuse or any modification or alteration that does not conform to the manufacturer’s original specifications.
  • At the workstation, the sound pressure level may exceed 85 db (A).
    • In this case individual protection measures must be taken.

Spare Parts Ordering :

When ordering spare parts, please mention machine serial no., part no. and description.

Fault Finding

1. The machine Dose not Work

POSSIBLE CAUSES

REMEDIES

Not plugged in properly or cable damaged

- Make sure that the supply is correctly plugged in (plug, extension lead, etc.)

- Check the supply cable

No mains voltage

Test or have tested by an electrician (circuit breaker, plug, etc.)

Switch defective, motor cable damaged

Have tested by an electrician or contact the service department

Motor faulty (burned out)

Contact the service department to have the motor replaced.

Overloaded motor triped

Wait a few minutes for the motor to cool down.

230 V Machines - Press green start button.

2. No Water Supply

POSSIBLE CAUSES

REMEDIES

No water supply

Fill up clean water in water tank

Pump does not work

Clean strainer

3.  The Pump Does Not Start

POSSIBLE CAUSES

REMEDIES

The mains lead is not correctly connected or is damaged

Check the mains lead

No voltage in pump circuit or mains supply circuit

Check the pump circuit and mains supply circuit

Maintenance

Prior to any maintenance work, the machine must be disconnected from the power supply.

  • Clean the machine daily.
  • Drain the water reservoir regularly.
  • Remove all mud and silt deposits in order to avoid the clogging of the water pump.
  • Rinse water pump filter daily.
  • Check daily that the rails are kept clean.
  • In the event of uneven or sluggish cutting, the blade must be cleaned by pressing a silicat or any other abrasive stone lightly against it while spinning.

SCRAPPING :

In the event of deterioration and scrapping of the machine, the following items must be disposed of in accordance with the requirements of the legislation in force.

Main Materials:

  • Motor : Aluminium (AL), Steel (AC), Copper (CU), Polyamide (PA)
  • Machine : Steel sheet (AC)
The instructions for use and spare parts found in this document are for information only and are not binding. As part of our product quality improvement policy, we reserve the right to make any and all technical modifications without prior notice.
