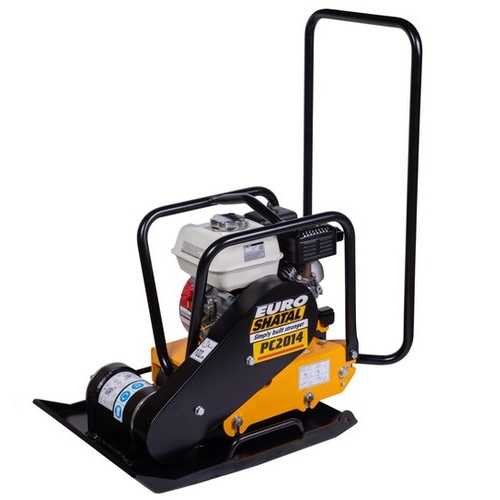

Vibrate Compactor

Vibrate Compactor
Vibrate Compactor
Product Code : PC2014
Brand Name : EURO SHATAL
Product Description

Vibrate Plate Compactor - PC2014

Description :

Cat No : M11810.C

4.5 HP Hatz Diesel engine, incl. cage.

  • Centrifugal force: 2000 kg
  • Weight: 112kg
  • Plate width: 50 cm

Cat No : M11810.C

5.5HP Honda Gasoline engine, incl. cage.

  • Centrifugal force: 2000 kg
  • Weight: 99.5kg
  • Plate width: 50 cm

CE DECLARATION OF CONFORMITY

We hereby declare that the equipment described below conforms to the relevant fundamental safety and health requirements of the appropriate CE Directives, both in its basic design and construction. This declaration will cease to be valid if any modifications are made to the machine without our expressed approval.

Product :

Vibratory Plate Compactors : PC2014 ; PC2014 Diesel

The said product has been sound tested per Directive 2000/14/EC

Conformity Assessment Procedure

Measured sound power level

Guaranteed sound power level

Annex VI

PC2014 102 dB(A)

PC2014 105 dB(A)

Annex VI

PC2014 Diesel 104 dB(A)

PC2014 Diesel 105 dB(A)

Relevant CE Machinery Safety Directives : 2006/42/EC, 2004/108/EC, EN500-1, EN500-4, 2000/14/EC

Appropriate internal measures have been taken to ensure that series-production units conform at all times to the requirements of current CE Directives and relevant standards.

The signatories are empowered to represent and act on behalf of the company’s management.

Safety Instruction :

  • Laws governing safety aspects on machinery may vary between countries but the following guides will useful to all operators:
  • Before starting, carefully read the machine maintenance and operating manual and follow all the instructions.
  • Use unleaded fuel only, for gasoline engines.
  • Never operate the machine without the belt guard.
  • Keep hand and feet away from moving parts while the machine is running.
  • Do not operate the machine in closed places and inflammable environment.
  • Operating the machine is advisable only with good lighting conditions.
  • Hearing protection must be worn.
  • Foot protection must be worn.
  • Do not touch hot surfaces.

Technical Specification :

MODELS
Cat. No.

PC2014 HONDA GASOLINE M11810.D

PC2014 HATZ DIESEL M11810.E

WEIGHT

Net Weight kg.

Kg

97

109

Operating Weight

Kg

104

118

COMPACTION DATA

Vibr. Frequency

Hz

93

93

Centrifugal Force

kg.

2000

2000

Compaction Area

m²/hour

720

720

OPERATION DATA

Max. Traveling speed

m/min

24

24

CAPACITIES

Oil for gear box SAE 30

Litres

0.13

0.13

Water tank Capacity

Litres

11

11

DRIVE MOTOR

Model

Honda GX160 Recoil start

Hatz 1B20 Recoil Start

Output

HP

5.5

4.5

Engine speed

rpm

3600

3600

Fuel tank

litres

3.6

3.6

Engine oil SAE 15W/40

litres

0.6

0.9

NOISE AND VIBRATIONS

Sound power level according to ISO 5349 (*)

Measured sound power level LwA=dB(A)

102

104

Vibration values a=m/s²

The hand - arm vibration values according to ISO 5349

1.44

1.44

Dimensions :

NO. / NR.

DESCRIPTION

PART NO.

QTY.

1

SET WATER TANK

P118281

1

2

VULCALON PLATE

P1181041

1

TRANSPORT TO WORK SITE :

  • To avoid burns or fire hazards,let engine cool before transporting machine or storing indoors.
  • Turn fuel valve to the off position and keep the engine level to prevent fuel from spilling.
  • Tie the machine to the vehicle to prevent sliding or tipping over.

INSTRUCTION FOR LIFTING MACHINE :

  • Never walk or stand under a machine being lifted.
  • Use only the frame lifting hook (1) for lifting the machine.
  • Use only tested and authorised lifting equipment. Before lifting check that vibration damper and protecting frame are correctly attached and not damaged.

OPERATION :

  • ENGINE CHECK BEFORE STARTING :
    • Fill fuel tank.
    • Check oil level in engine crankcase and top up necessary type of oil according to manufacturer’s instructions.
  • STARTING THE ENGINE :
    • Open handle locking pin
  • OPERATING THE MACHINE :
    • This plate compactor is designed for compacting loose, granular soils, gravel, and paving stones.
    • Compactors equipped with water tanks are designed for compacting asphalt.
    • Operate the compactor only at full throttle.
    • Let the compactor progress at its normal speed while guiding it in a straight line.
    • Three or four passes depending on the material are normally required to achieve the best compaction.
    • The soil must be moist to achieve the best compaction.
    • It must not be too wet nor too dry so that dust is created.
    • Do not operate the compactor on hard surfaces or concrete.
    • Attach a polyureathane plate under the compactor when compacting paving stones.
    • Fill the water tank with water and the water flow valve when compacting asphalt.

IMPORTANT ADVICE :

The manufacturer declines all responsibility for loss or damage resulting from misuse or any modification or alteration that does not conform to the manufacturer’s original specifications. At the workstation, the sound pressure level may exceed 85 db (A). In this case individual protection measures must be taken

Spare Parts Ordering :

When ordering spare parts, please mention machine serial no., part no. and description.

Scrapping :

In the event of deterioration and scrapping of the machine, the following items must be disposed of in accordance with the requirements of the legislation in force.

Main Materials:

  • Engine : Aluminium (AL), Steel (AC), Copper (CU), Polyamide (PA)
  • Machine : Steel sheet (AC)

The instructions for use and spare parts found in this document are for information only and are not binding. As part of our product quality improvement policy, we reserve the right to make any and all technical modifications without prior notice.

Maintenance Schedule :

Check all external screw connections for tight fit approx. 8 hours after first operation.

Parts

Maintenance

Maintenance interval

Air filter

Engine oil
Other parts

Check for external damage and tight fit.
Check foam and filter insert clean or replace if necessary.
Check oil level, top up if necessary.
Remove all dirt, stones etc. from the Power trowel after each day of operation..

Daily

Belts

Check tension and wear - replace if necessary.

Weekly

Engine

See engine manufacturers handbook


Monthly maintenance :

  • Perform maintenance work on engine according manufacturer's instructions.
  • Check belt tightness and tighten if necessary. Belts should be move 10 -15 mm when pushed by the thumb.
  • Check and retighten bolts and nuts.
  • Apply grease to the 4 grease nipples on the spider block.

INSTRUCTIONS FOR ORDERING

Please State Machine Details in the Following Sequence:

  • Machine Serial Number
  • Part Number, Description and Quantity of Parts
  • Full Delivery Address

Manufacturers Liability and the Use of Genuine Spare Parts

Liability for this machine is accepted only when the machine is defective from the outset. Liability is reduced or nullified in the event that the user fails to comply with the operating and maintenance instructions and uses spare parts which are not guaranteed.
